• A/C
• AM/FM Stereo
• Bucket Seats
• Conventional Spare Tire
• Driver Air Bag
• Front Disc/Rear Drum Brakes
• Intermittent Wipers
• Passenger Air Bag
• Power Steering
• Rear Wheel Drive
• Tires - Front All-Season
• Tires - Rear All-Season

• (1) 4-passenger color-keyed vinyl rear bench seat
• (3) 3-passenger color-keyed vinyl intermediate bench seats
• 15-passenger seating
• Black plastic stepwell pads
• Black vinyl steering wheel
• Color-keyed coat hooks
• Courtesy light switches for all doors
• Dual color-keyed vinyl front bucket seats
• Electronic AM/FM stereo radio-inc: digital clock, (4) speakers
• Front air conditioning
• Front dome light
• Full-length black floor mat
• Liquid crystal display odometer
• Medium dark graphite instrument panel
• Medium graphite cloth sun visors w/RH mirror & cover
• Medium graphite cowl side trim panel
• Medium graphite full-length acoustical cloth headliner
• Medium graphite plastic front door trim panels
• Medium graphite side/rear trim panels
• Rear cargo light

• (5) 7.0K 8-hole wheels w/bright hub caps
• (5) LT245/75R16E all-season SBR BSW tires
• 3400# capacity front/6195# capacity rear springs
• 35.0 gallon fuel tank
• 4-wheel anti-lock braking system (ABS)
• 4600# capacity twin I-beam front/6340# capacity semi-floating rear axles
• 72 amp-hour (650 CCA) maintenance-free battery
• 9300# GVWR
• 95 amp alternator
• Class I trailer towing pkg-inc: trailer wiring harness
• Handling pkg-inc: front stabilizer bar, HD front/rear gas shock absorbers
• Pwr front disc/rear drum brakes
• Pwr steering
• Rear-wheel drive

5.4L EFI OHC V8 ENGINE ($0)

• (STD)

• 3rd Row Seat

• Vehicle
• Rear Door Type: Panel
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 95
• Maximum Alternator Watts: 1425
• Cooling System
• Total Cooling System Capacity (qts): 29.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4600
• Gross Axle Wt Rating - Rear (lbs): 6340
• Curb Weight - Front (lbs): 2897
• Curb Weight - Rear (lbs): 3190
• Gross Vehicle Weight Rating Cap (lbs): 9100
• Gross Combined Wt Rating (lbs): 12,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5700
• Dead Weight Hitch - Max Tongue Wt. (lbs): 570
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 3500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 350
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3400
• Spring Capacity - Rear (lbs): 6195
• Axle Type - Front: Twin-I-Beam
• Axle Type - Rear: Dana Full-Floating
• Axle Capacity - Front (lbs): 4600
• Axle Capacity - Rear (lbs): 6340
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.00
• Brakes
• Brake Type: Power
• Brake ABS System: Four Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.03 x 0.48
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 12.125 x 3.50
• Tires
• Front Tire Order Code: T38
• Rear Tire Order Code: T38
• Spare Tire Order Code: T38
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 3042
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): 3042
• Revolutions/Mile @ 45 mph - Front: 677
• Revolutions/Mile @ 45 mph - Rear: 677
• Revolutions/Mile @ 45 mph - Spare: 677
• Wheels
• Front Wheel Size (in): 16 x 7.0
• Rear Wheel Size (in): 16 x 7.0
• Spare Wheel Size (in): 16 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: 17.0
• Turning Diameter - Curb to Curb (ft): 48.0
• Turning Diameter - Wall to Wall (ft): 50.2
• Frame
• Frame Type: Single Channel
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 35.0
• Fuel Tank Location: Midship
• Doors
• Side Door Type: Hinged
• Exterior Dimensions
• Wheelbase (in): 138.0
• Length, Overall w/rear bumper (in): 232.0
• Width, Max w/o mirrors (in): 79.3
• Height, Overall (in): 80.9
• Overhang, Front (in): 30.1
• Overhang, Rear w/bumper (in): 63.8
• Ground to Top of Load Floor (in): 30.2
• Ground Clearance, Front (in): 7.0
• Ground Clearance, Rear (in): 7.0
• Rear Door Opening Height (in): 48.3
• Rear Door Opening Width (in): 54.6
• Side Door Opening Height (in): 48.3
• Side Door Opening Width (in): 47.1
• Step Up Height - Front (in): - TBD -
• Step Up Height - Side (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 140.5
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Length @ Floor to Seat 4 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.3
• Cargo Box (Area) Height (in): 52.5
• Cargo Volume to Seat 1 (ft³): 299.8
• Cargo Volume to Seat 2 (ft³): - TBD -
• Cargo Volume to Seat 3 (ft³): - TBD -
• Cargo Volume to Seat 4 (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 15
• Front Head Room (in): 42.5
• Front Leg Room (in): 40.0
• Front Shoulder Room (in): 68.4
• Front Hip Room (in): 65.6
• Second Head Room (in): 40.2
• Second Leg Room (in): 36.9
• Second Shoulder Room (in): 70.5
• Second Hip Room (in): 66.5
• Third Head Room (in): 40.1
• Third Leg Room (in): 41.4
• Third Shoulder Room (in): 71.2
• Third Hip Room (in): 71.2
• Fourth Head Room (in): 39.6
• Fourth Leg Room (in): 40.8
• Fourth Shoulder Room (in): 69.7
• Fourth Hip Room (in): 66.3
• Fifth Head Room (in): 38.0
• Fifth Leg Room (in): 38.5
• Fifth Shoulder Room (in): 68.1
• Fifth Hip Room (in): 66.0
• Summary

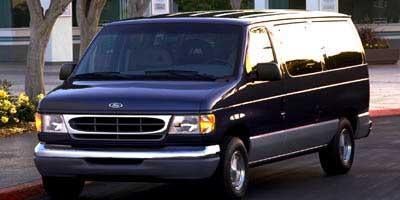

• Vehicle Name: Ford Club Wagon
• Body Style: Ext Passenger Van
• Body Code: 138.0" WB
